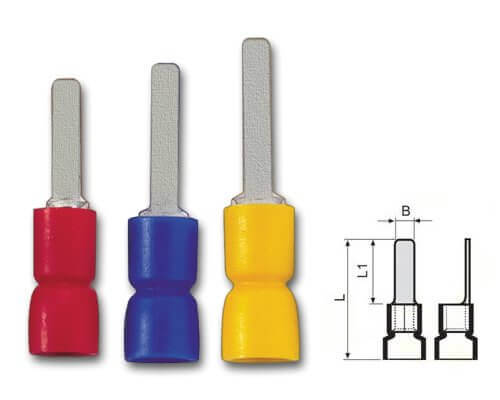

| ITEM | 尺寸(mm) | AWG | ||
| B | L1 | L | ||
| PIN110FB | 2.2 | 10.5 | 22.0 | 22-18 |
| PIN111FB | 2.9 | 11.0 | 22.5 | 22-18 |
| PIN114FB | 2.9 | 14.0 | 25.5 | 22-18 |
| PIN118FB | 2.2 | 18.0 | 29.5 | 22-18 |
| PIN2-9FB | 2.8 | 9.0 | 20.5 | 16-14 |
| PIN210FB | 2.2 | 10.5 | 22.0 | 16-14 |
| PIN213FB | 2.2 | 13.0 | 24.5 | 16-14 |
| PIN218FB | 2.2 | 18.0 | 29.5 | 16-14 |
| PIN510FB | 2.8 | 10.5 | 26.0 | 12-10 |
| PIN518FB | 3.0 | 18.0 | 33.5 | 12-10 |
